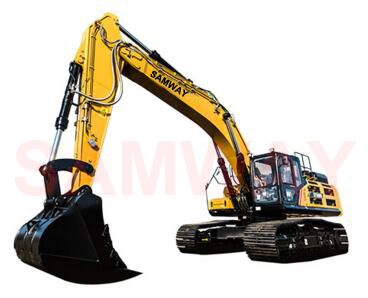

SAMWAY S500H Hydraulic Excavator

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY S500H Hydraulic Excavator

SAMWAY S500H Hydraulic Excavator

First-class Cheebtsam lav txhim khu kev qha cov zov me nyuam rau cov neeg mobtsuas heavy-duty

Haib cav thiab lub peev xwm loj thoob muab ceev ua haujlwm thiab tej kev kub efficiency

Cov counterweight thiaj li txwv tsis pub mus ncig teb chaws thiab lowers cov nqi tsheb thauj mus los

Av tu (lim)

Lub neej ntev roj thiab cov ntxaij lim dej cuag mus tu thiab txo cov kev pab cuamcov nqi

Optimized alarm rau yav tom ntej visibility thiab txob ntau tus neeg teb xov tooj &kev ruaj ntseg

3 aux circuits (/ Qib High School siab txaus siab Circuit Court, uas tsis muaj txaus/qis siab Circuit Court, ceev coupler Circuit Court)

Nyob rau hauv tsheb tav xis kov khawm hydraulic txaus ntu kev haum

Tsheb saib koob yees duab

Qauv tswj kev hloov valve

ZUAG QHIA TAG NRHO COV QHOV NTEV

		Txuj	Metric
A	Thauj ntev	39 10"	12,157 mm
B	Thauj dav	11' 11"	3640 mm
C	Thauj qhov siab	12' 4"	3768 mm
D	Lub dav	10' 9"	3292 mm
E	Tsheb tavxij qhov siab	11' 2"	3423 mm
F	Khau khiav dav (txuj)	2' 11"	900 mm
G	Tag huv tibsi khiav	8' 11"	2740 mm
H	Yam tsawg kawg nkaus hauv av Clearance	1' 10"	560 mm
I	Voos kheej-kheej viav tw	12' 7"	3850 mm
J	Ntev Center Idler rau Center Sprocket	14' 5"	4412 mm
K	Teev sijhawm	17' 10"	5459 mm
	Ntev boom	22' 11"	7000 mm
	Caj npab ntev (txuj)	12’ 9”	3900 mm

UA HAUJ LWM NTAU YAM

		Txuj	Metric
a	Ntau khawb qhov siab	36' 5"	11,112 mm
b	Ntau qhov siab Dumping	25' 8"	7843 mm
c	Ntau khawb qhov tob	27' 1"	8255 mm
d	Khawb ntau cuag	41' 1"	12,537 mm
e	Viav ntau voos kheej-kheej	17' 2"	5237 mm
f	Yam tsawg kawg nkaus ntawm lub voos kheej-kheej viav yam tsawg kawg nkaus qhov siab	29' 8"	9057 mm
g	Phab ntsa ntsug ntau qhov khawb tob	22' 0"	6725 mm

TSIS CAV

Kev khiav hauj lwm hnyav	115,743 lb (52,500 kg)
Hom cav	Cummins QSL9 T4 kawg
Max cav faiv fab (tag nrho)	400 hp (298 kW) @ 2100rpm
Max Torque cav	1501 lbf-ft (2034 Nm) @ 1400 rpm
Cav xaav	720 in3 (11.8 liter)
Twj tso kua mis loj txaus	2x 95 gpm (360 lpm)
Viav vias ceev	8.0 rpm
Mus ceev	1.9/3.4 mph (3.1/5.4 km/h)
Tractive dag zog	75,086 lbf-ft (334 kN)
Max caj npab Diggging Force (ISO)	46,535 lbf-ft (207 kN)
Coob cov chais sab sauv	2
Tsawg tsawg tus chais	9
Roj Tank peev xwm	180 gal (680 liter)
Peev xwm Tank DEF	14.7 gal (56 liter)
Peev xwm hydraulic Tank	127 gal (480 liter)
Cua txias uas muaj peev xwm	13.0 gal (50 liter)
Peev xwm roj cav	9.0 gal (33 liter)
Hauv siab (khau 31.5"/ 800 hli)	8.6 psi (59 kPa)
