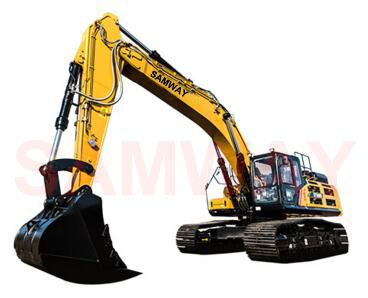

SAMWAY S500H Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S500H Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S500H Hydraulic Excavator
Product Description
SAMWAY S500H Hydraulic Excavator
First-class components guarantee reliable operation in heavy-duty mining conditionsPowerful engine and large bucket capacity provide fast operation and high efficiencyRemovable counterweight reduces travel restrictions and lowers transportation expensesGround level maintenance (filters)Long-life oil and filters extend maintenance cycles and reduce service costsOptimized cabin for excellent visibility and maximum operator comfort & safety3 aux circuits (high flow/high pressure circuit, low flow/low pressure circuit, Quick coupler circuit)In cab touch button auxiliary hydraulic flow adjustmentRear view cameraPattern control change valve
OVERALL DIMENSIONS
| Standard |
Metric |
||
| A | Transport Length |
39 10" |
12,157 mm |
| B | Transport Width |
11' 11" |
3640 mm |
| C | Transport Height |
12' 4" |
3768 mm |
| D | Upper Width |
10' 9" |
3292 mm |
| E | Cab Height |
11' 2" |
3423 mm |
| F | Track Shoe Width (standard) |
2' 11" |
900 mm |
| G | Track Gauge |
8' 11" |
2740 mm |
| H | Minimum Ground Clearance |
1' 10" |
560 mm |
| I | Tail Swing Radius |
12' 7" |
3850 mm |
| J | Length Center Idler to Center Sprocket |
14' 5" |
4412 mm |
| K | Track Length |
17' 10" |
5459 mm |
| Boom Length |
22' 11" |
7000 mm |
|
| Arm Length (standard) |
12’ 9” |
3900 mm |
WORKING RANGE
| Standard |
Metric |
||
| a | Maximum Digging Height |
36' 5" |
11,112 mm |
| b | Maximum Dumping Height |
25' 8" |
7843 mm |
| c | Maximum Digging Depth |
27' 1" |
8255 mm |
| d | Maximum Digging Reach |
41' 1" |
12,537 mm |
| e | Maximum Swing Radius |
17' 2" |
5237 mm |
| f | Minimum Height at Minimum Swing Radius |
29' 8" |
9057 mm |
| g | Maximum Vertical Wall Digging Depth |
22' 0" |
6725 mm |
MACHINE PARAMETERS
| Operating Weight |
115,743 lb (52,500 kg) |
| Engine Type |
Cummins QSG12 T4 final |
| Engine Max Power (Gross) |
400 hp (298 kW) @ 2100rpm |
| Engine Max Torque |
1501 lbf-ft (2034 Nm) @ 1400 rpm |
| Engine Displacement |
720 in3 (11.8 liter) |
| Main Pump Flow |
2x 95 gpm (360 lpm) |
| Swing Speed |
8.0 rpm |
| Travel Speed |
1.9/3.4 mph (3.1/5.4 km/h) |
| Tractive Effort |
75,086 lbf-ft (334 kN) |
| Max Arm Digging Force (ISO) |
46,535 lbf-ft (207 kN) |
| Number of Upper Rollers |
2 |
| Number of Lower Rollers |
9 |
| Fuel Tank Capacity |
180 gal (680 liter) |
| DEF Tank Capacity |
14.7 gal (56 liter) |
| Hydraulic Tank Capacity |
127 gal (480 liter) |
| Cooling System Capacity |
13.0 gal (50 liter) |
| Engine Oil Capacity |
9.0 gal (33 liter) |
| Ground Pressure (31.5”/800mm shoes) |
8.6 psi (59 kPa) |
Warranty Information
12 months
