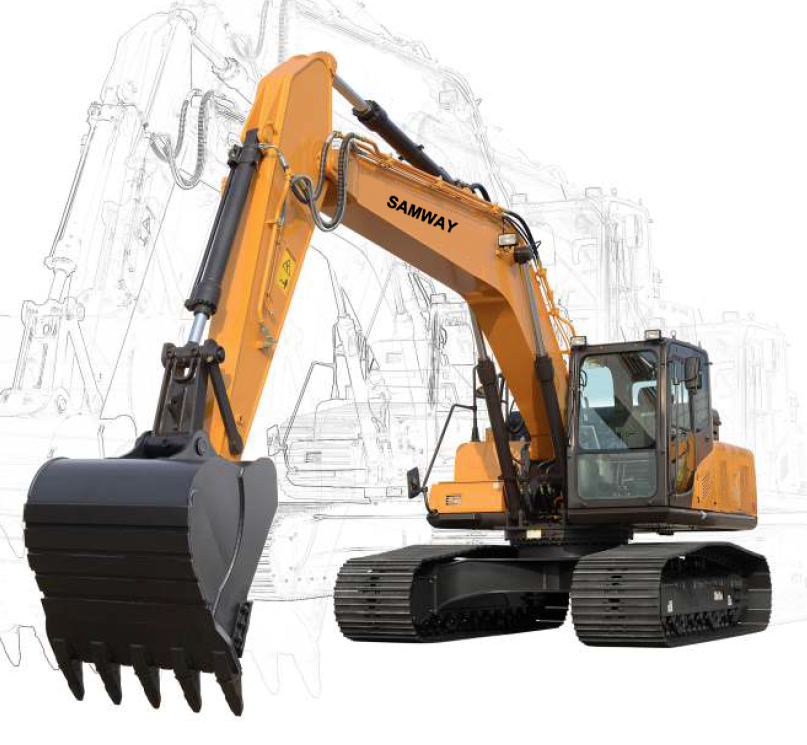

S215C SAMWAY Mae Jac codi baw hydrolig
Price:
sales@samway.com
SKU:
S215C SAMWAY Mae Jac codi baw hydrolig
Brand:
Weight:
N/A
Availability:
S215C SAMWAY Mae Jac codi baw hydrolig
Product Description
S215C SAMWAY Mae Jac codi baw hydrolig
• Peiriant: Cummins QSB6.7 T4 terfynol
Mae cab SAMWAY • cynllun newydd wedi gofod mwyaf, gwelededd llydan a mynediad hawdd at reolaethau gyda monitor llawn-lliw a darparu
mynediad hawdd i wybodaeth gweithrediad peiriant
Ymhlith nodweddion safonol • Hydroleg ategol ddwyffordd a rheoli patrwm newid falf i gynyddu cynhyrchiant ac amlochredd
• Yn wir, hir undercarriage dylunio i gynyddu sefydlogrwydd
DIMENSIYNAU CYFFREDINOL
| Safon |
Metrig |
||
| A | Darn trafnidiaeth |
31' 11" |
9728 mm |
| B | Lled trafnidiaeth |
10' 5" |
3180 mm |
| C | Uchder trafnidiaeth |
11' 1" |
3370 mm |
| D | Lled strwythur uchaf |
8' 11" |
2710 mm |
| E | Uchder Cyngor ar Bopeth |
10' 0" |
3050 mm |
| F | Lled esgid trac (safon) |
2' 7" |
800 mm |
| G | Mesuriadau trac |
7' 10" |
2380 mm |
| H | Chlirio tir lleiaf |
1' 7" |
480 mm |
| I | Chlirio tir lleiaf |
9' 6" |
2890 mm |
| J | Darn Canolfan Idler i ddannedd y Ganolfan |
11' 11" |
3640 mm |
| K | Darn trac |
14' 7" |
4450 mm |
| K | Darn ffyniant |
18' 8" |
5700 mm |
| L | Hyd braich (safon) |
9’ 7” |
2925 mm |
YSTOD GWEITHIO MEWN
| Safon |
Metrig |
||
| a | Palu uchafswm uchder |
30' 1" |
9180 mm |
| b | Uchder y domen |
21' 10" |
6670 mm |
| c | Palu uchafswm dyfnder |
21' 8" |
6600 mm |
| d | Dyfnder palu uchafswm wal fertigol |
19' 7" |
5980 mm |
| e | Cyrraedd uchafswm palu |
33' 10" |
10,307 mm |
| f | Siglen leiaf radiws |
12' 2" |
3730 mm |
| g | Uchder mwyaf ar siglen leiaf radiws |
25' 2" |
7680 mm |
PARAMEDRAU PEIRIANT
| Gweithredu pwysau |
51,989 lb (23550 kg) |
| Injan math |
T4 Cummins QSB6.7 terfynol |
| Max injan pŵer (gros) |
168 hp (125 kW) @ 1900rpm |
| Torque Max injan |
540 lbf (732 Nm) @ 1500 rpm |
| Dadleoli injan |
408 in3 (6.7 liter) |
| Pwmp prif lif |
2x 59 gpm (222 lpm) |
| Cyflymder siglen |
10.9 rpm |
| Cyflymder teithio |
1.9/3.3 mph (3.1/5.3 km/h) |
| Ymdrech tractive |
40,466 lbf (180 kN) |
| Max fraich Diggging rym (ISO) |
23,155 lbf (103 kN) |
| Nifer o rholeri uchaf |
2 |
| Nifer o rholeri is |
9 |
| Capasiti tanc tanwydd |
90 gal (340 liter) |
| DEF tanc capasiti |
5 gal (19 liter) |
| Capasiti tanc hydrolig |
61 gal (230 liter) |
| Gallu'r System oeri |
7.3 gal (27.6 liter) |
| Capasiti olew injan |
7.13 gal (27 liter) |
| Sail pwysau (esgidiau 31.5"/ 800mm) |
5.3 psi (36.3 kPa) |
Warranty Information
12 months
