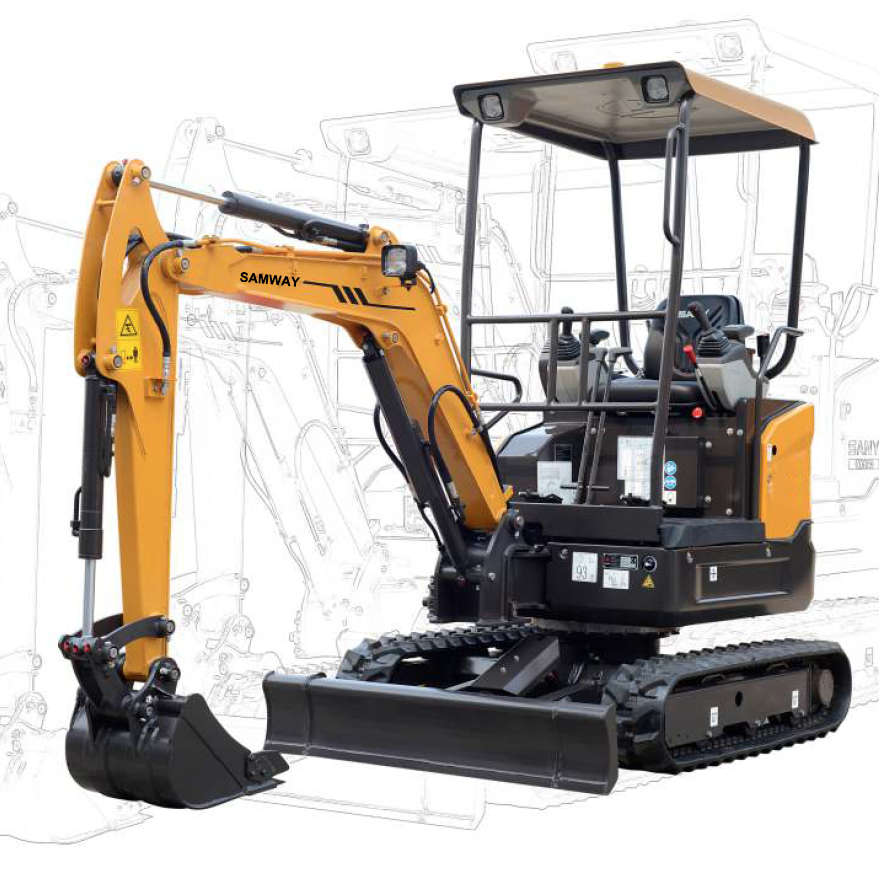

S16C SAMWAY Mae Jac codi baw hydrolig
Price:
sales@samway.com
SKU:
S16C SAMWAY Mae Jac codi baw hydrolig
Brand:
Weight:
N/A
Availability:
S16C SAMWAY Mae Jac codi baw hydrolig
Product Description
S16C SAMWAY Mae Jac codi baw hydrolig
• Peiriant: Yanmar 3TNV74F, 4f haen
• Gwasanaeth cyfleus pwyntiau ar gyfer cynnal a chadw hawdd.
• Gynffon fer siglen yn ddelfrydol ar gyfer safleoedd swydd dynn ac yn gweithiomewn mannau cyfyngedig
• Llinellau yn rhedeg i lawr y ffyniant ac offer fel safon ar gyfer rhedeg o atodiadau hydrolig a hawdd i fyny addas hyd braich
• Llwytho Hydroleg synhwyro effeithlonrwydd tanwydd cynyddol a pherfformiad wedi'i mwyhau
• Byddai ymestyn undercarriage â llafn flaen gymwysadwy lled safonol
• Dau gyflymder teithio
DIMENSIYNAU CYFFREDINOL
| Safon |
Metrig |
||
| A | Darn trafnidiaeth |
11' 7" | 3575 mm |
| B | Lled trafnidiaeth |
3' 2" / 4’ 5” | 980 / 1350 mm |
| C | Uchder trafnidiaeth |
7' 11" | 2420 mm |
| D | Lled uchaf |
6' 2" | 980 mm |
| E | Uchder platfform |
1' 6" | 470 mm |
| F | Uchder gorchudd injan |
4' 2" | 1280 mm |
| G | Cynffon siglen radiws |
3' 0" | 920 mm |
| H | Trac y darn tir |
4' 0" | 1225 mm |
| I | Darn trac |
5' 2" | 1585 mm |
| J | Mesuriadau trac |
2’ 5” / 3’ 8” | 750 / 1120 mm |
| K | Lled safonol trac esgid |
0' 10" | 230 mm |
| L | Uchder llafn dozer |
0' 11" | 270 mm |
| M | Dozer llafn Max. Uchder |
1’ 0” | 310 mm |
| N | Dyfnder Max dozer llafn |
1’ 0” | 320 mm |
YSTOD GWEITHIO MEWN
| Safon |
Metrig |
||
| a | Palu uchafswm uchder |
12' 3" | 3665 mm |
| b | Uchder y domen |
8' 8" | 2635 mm |
| c | Palu uchafswm dyfnder |
7' 9" | 2360 mm |
| d | Dyfnder palu uchafswm wal fertigol |
7' 3" | 2215 mm |
| e | Cyrraedd uchafswm palu |
13' 1" | 4000 mm |
| f | Siglen leiaf radiws |
5' 5" | 1655 mm |
| g | Uchder mwyaf ar siglen leiaf radiws |
9' 1" | 2745 mm |
PARAMEDRAU PEIRIANT
| Gweithredu pwysau |
4,023 lb (1825 kg) |
| Injan math |
Yanmar Tier 4 final |
| Max injan pŵer (gros) |
15.0 hp (11.2 kW) @ 2400 rpm |
| Torque Max injan |
38.2 lbf-ft (51.8 Nm) @ 1800 rpm |
| Dadleoli injan |
60.6 in3 (0.993 liter) |
| Pwmp prif lif |
12.7 gpm (48 lpm) |
| Cyflymder siglen |
10 rpm |
| Cyflymder teithio |
1.3/2.1 mph (2.1/3.7 km/h) |
| Ymdrech tractive |
3,507 lbf (15.6 kN) |
| Cangen Max palu rym (amlen barod) |
2,068 lbf (9.2 kN) |
| Nifer o rholeri uchaf |
2 |
| Nifer o rholeri is |
3 |
| Capasiti tanc tanwydd |
6.1 gal (23 liter) |
| Capasiti tanc hydrolig |
5.5 gal (21 liter) |
| Gallu'r System oeri |
1.0 gal (3.8 liter) |
| Capasiti olew injan |
0.5 gal (2.0 liter) |
| Sail pwysau (esgidiau 31.5"/ 800mm) |
4.2 psi (29 kPa) |
Warranty Information
12 months
