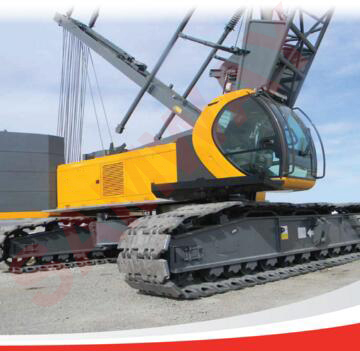

SAMWAY SCC8200 Crawler Crane

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY SCC8200 Crawler Crane

SAMWAY SCC8200 Crawler Crane

• Engine: Cummins QSL9, 325 hp @ 2100 rpm

• Hydraulic system: Rexroth pumps and drive motors

• SAMWAY-designed LML with large display screen

• New ergonomic cab, styled by Porsche Design Studios

• Three configurations available: Main Boom, Fixed Jib, and Luffing Jib

MACHINE PARAMETERS

	Standard	Metric
Max. rated lifting capacity	440,924 lbs	200 t
Boom length	52' ~ 282'	16~86 m
Boom luffing angle	30 ~ 80°
Longest boom + Longest fixed jib	234' + 101'	71.5 + 31 m
Angle between boom and jibe	10 ~ 30°
Max. rated lifting moment	294 x 18 ft kips	40.7×18 t•m
Longest boom + Longest luffing jib	170' + 167'	52+51 m
Boom luffing angle	65 ~ 85°
Jib luffing angle	15 ~ 75°
Main vice winch wire rope (outermost working layer)	410 ft/min	0 ~ 125 m/min
Boom luffing winch wire rope(outermost working layer)	144 x 2 ft/min	(0 ~ 44)x2 m/min
Jib luffing winch wire rope (outermost working layer)	144 ft/min	0 ~ 44 m/min
Swing speed	0 ~ 2 rpm
Traveling speed	0.93 mph	0 ~ 1.5 hm/h
Gradient capability	30%
Output power /Rated speed	325/2100 hp/rpm	242/2100rpm kW/rpm
Max. transport weight of single part	94,799 lbs	43 t
Transport dimensions (LWH)	36'6" x 9'10" x 11'2"	11,130×3000×3400 mm
Average ground bearing pressure	143.5 psi	0.1 MPa
