SAMWAY SCC8100 Crawler Crane

  • SAMWAY SCC8100 Crawler Crane
Price:
sales@samway.com
SKU:
SAMWAY SCC8100 Crawler Crane
Brand:
Weight:
N/A
Availability:
SAMWAY SCC8100 Crawler Crane
Bookmark and Share


Product Description

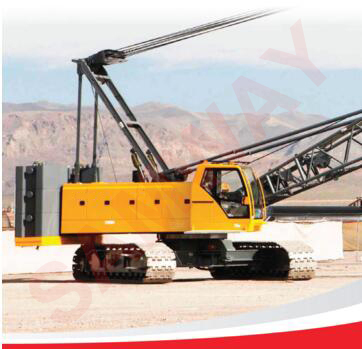

SAMWAY SCC8100 Crawler Crane

• Engine: Cummins QSC8.3, 245 hp @ 2000 rpm

• Hydraulic system: Rexroth pumps and drive motors

• SAMWAY-designed LMI with large display screen

• Extendable tracks

• Two configurations available: Main Boom and Fixed Jib

• Main boom available in Tubular and Angle construction

KEY FEATURES

Maximum Capacity @ Radius 110 US T @ 12.5 ft
Main Boom

3,6 & 9 Meter Sections

42 ft 8 in. – 219 ft 10 in.

Max Tip Height (H Main Boom) 223 ft
Fixed Jib Length 29 ft 6 in. – 59 ft 1 in.
Main Winch - Rated Line Pull 20,944 lb
Wire Rope Diameter 24 mm

Weight

Basic Machine (Without Track Frames & With Boom Butt)

99,206 lb
Total Counterweight (Series 2) 82,450 lb

Length

Basic Machine - Transport (With Track Frames & Boom Butt)

43 ft 4 in.

Height

Basic Machine - Transport (With Track Frames & Boom Butt)

11 ft 5 in.

Width

Basic Machine - Transport (With Track Frames & Boom Butt)

11 ft 4 in.
Tail Swing 16 ft 5 in

TRANSPORT DIMENSIONS


BASE MACHINE (With Track Frame)
Length 43'4"
Width 11'4"
Height 11'5"
Weight 99206 lb



BASE MACHINE (Without Track Frame)
Length 26'2"
Width 11'
Height 10'
Weight 55115 lb



TRACK FRAME
Length 20'8"
Width 3'7"
Height 3'11"
Weight 20944 lb



BOOM BASE
Length 22'1"
Width 5'3"
Height 7'2"
Weight Tubular Boom 3726 lb
Weight Tubular Boom w/ Third Drum
7523 lb
Weight Angle Boom 3748 lb



BOOM TIP
Length 23'4"
Width 5'3"
Height 5'9"
Weight Tubular Boom 3241 lb
Weight Angle Boom 3190 lb



BOOM INSERT 9'10" (3m)

Length 10'4"
Width 5'6"
Height 5'5"
Weight Tubular Boom 1014 lb
Weight Angle Boom 1378 lb



BOOM INSERT 19'8" (6m)

Length 20'2"
Width 5'3"
Height 5'5"
Weight Tubular Boom 1631 lb
Weight Angle Boom 2173 lb



BOOM INSERT 29'6" (9m) No. 1
Length 30'
Width 5'3"
Height 5'5"
Weight Tubular Boom 2072 lb
Weight Angle Boom 3057 lb



BOOM INSERT 29'6" (9m) No. 2
Length 30'
Width 5'3"
Height 5'5"
Weight Tubular Boom 2072 lb
*Not Available in Angle Boom



FIXED JIB TIP 14'9" (4.5m)
Length 16'
Width 2'10"
Height 2'6"
Weight 728 lb



FIXED JIB BASE 14'9" (4.5m)
Length 15'6"
Width 2'11"
Height 2'6"
Weight 661 lb



FIXED JIB INSERT 14'9" (4.5m)
Length 15'
Width 2'10"
Height 2'6"
Weight 507 lb



UPPER BOOM POINT
Length 6'2"
Width 2'5"
Height 2'1"
Weight Tubular Boom 375 lb
Weight Angle Boom 375 lb



CRAWLER SIDE COUNTERWEIGHT
Length 12'5"
Width 1'3"
Height 2'5"
Weight 11023 lb



UPPERWORKS COUNTERWEIGHT TRAY
Length 14'1"
Width 5'3"
Height 2'
Weight 22046 lb



COUNTERWEIGHT BLOCK
Length 4'6"
Width 3'7"
Height 2'7"
Weight 6393 lb



HOOK BLOCK 110 USt (100 Mt)
Length 7'4"
Width 2'11"
Height 2'9"
Weight 5357 lb



HOOK BLOCK 88 USt (80 Mt)
Length 6'10"
Width 2'9"
Height 2'6"
Weight 3197 lb



HOOK BLOCK 55 USt (50 Mt)
Length 6'6"
Width 2'9"
Height 1'7"
Weight 2205 lb



HOOK BLOCK 27.5 USt (25 Mt)
Length 5'10"
Width 2'11"
Height 1'2"
Weight 1235 lb



HOOK BALL 10 USt (9 Mt)
Length 3'1"
Width 1'2"
Height 1'2"
Weight 750 lb

NOTES:

1. The transport dimensions of the parts marked on schematic diagrams, but not drawn to scale; the dimensions         indicated are the design values excluding package.
