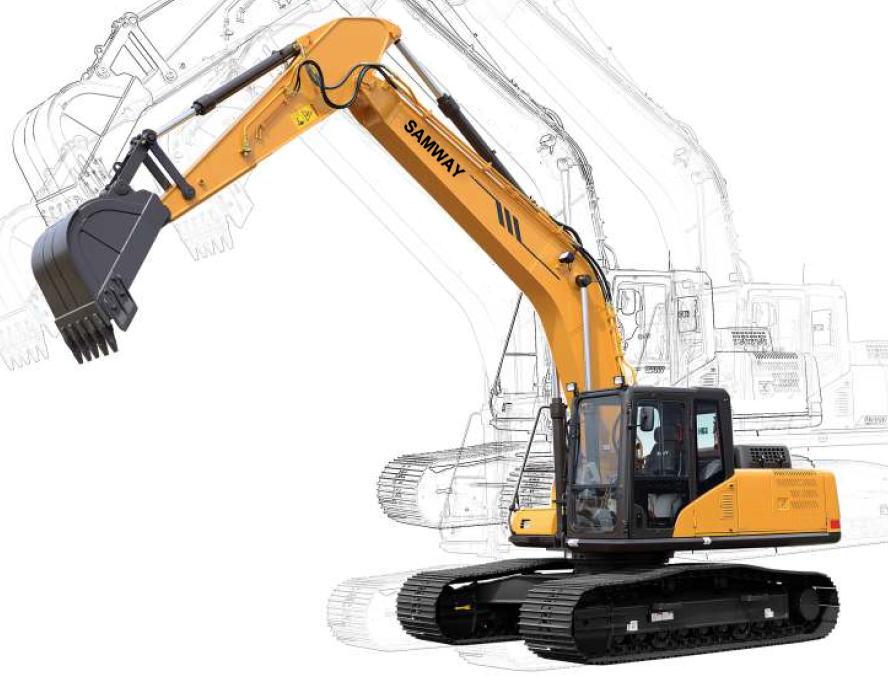

SAMWAY S235CLC Hydraulic Excavator

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY S235CLC Hydraulic Excavator

SAMWAY S235CLC Hydraulic Excavator

• Cov cav: Tier Cummins QSB 6.7, 3

Tsheb tavxij SAMWAY • tshiab khiv tsim los muaj ntau qhov chaw, visibility dav thiab kev siv ntawm lwm yam uas muaj ib tug saib tag

nro-kob uas muaj ntaub ntawvzov me nyuam tshuab yooj yim siv tau yooj yim

• Hydraulic tswj txoj kev tswj yav tom ntej thiab ua siab productivity

• Txheem nta xws li ntu hydraulics two-way thiab ib tug qauv-tswj hloov valve komproductivity thiab versatility

ZUAG QHIA TAG NRHO COV QHOV NTEV

		Txuj	Metric
A	Thauj ntev	33' 2"	10,120 mm
B	Thauj dav	11' 1"	3390 mm
C	Thauj qhov siab	11' 1"	3394 mm
D	Lub qauv dav	8' 11"	2710 mm
E	Tsheb tavxij qhov siab	10' 0"	3050 mm
F	Khau khiav dav (txuj)	2' 8"	800 mm
G	Tag huv tibsi khiav	8' 6"	2590 mm
H	Yam tsawg kawg nkaus hauv av Clearance	1' 7"	480 mm
I	Voos kheej-kheej viav tw	9' 6"	2890 mm
J	Ntev Center Idler rau Center Sprocket	12' 7"	3830 mm
K	Teev sijhawm	15' 2"	4635 mm
K	Ntev boom	19' 4"	5900 mm
L	Caj npab ntev (txuj)	9’ 9”	2962 mm

UA HAUJ LWM NTAU YAM

		Txuj	Metric
a	Ntau khawb qhov siab	31' 2"	9520 mm
b	Ntau khawb qhov siab	22' 1"	6730 mm
c	Ntau khawb qhov tob	22' 2"	6757 mm
d	Phab ntsa ntsug ntau qhov khawb tob	19' 3"	5860 mm
e	Khawb ntau cuag	33' 4"	10,165 mm
f	Yam tsawg kawg viav voos kheej-kheej	12' 6"	3800 mm
g	Qhov siab siab tshaj plaws ntawm lub voos kheej-kheej viav yam tsawg kawg nkaus	26' 1"	7940 mm

TSIS CAV

Kev khiav hauj lwm hnyav	55,589 lb (25,215 kg)
Hom cav	Cummins QSB6.7 T4 kawg
Max cav faiv fab (tag nrho)	195 hp (145 kW) @ 1950 rpm
Max Torque cav	687 lbf (931 Nm) @ 1400 rpm
Cav xaav	408 in3 (6.7 liter)
Twj tso kua mis loj txaus	2x 67 gpm (252 lpm)
Viav vias ceev	13 rpm
Mus ceev	2.0/3.4 mph (3.2/5.5 km/h)
Tractive dag zog	43,836 lbf-ft (195 kN)
Max caj npab Diggging Force (ISO)	39,340 lbf-ft (122 kN)
Coob cov chais sab sauv	2
Tsawg tsawg tus chais	9
Roj Tank peev xwm	90 gal (340 liter)
Peev xwm hydraulic Tank	61 gal (230 liter)
Cua txias uas muaj peev xwm	7.3 gal (27.6 liter)
Peev xwm roj cav	7.0 gal (26.4 liter)
Hauv siab (khau 31.5"/ 800 hli)	5.2 psi (35.7 kPa)
