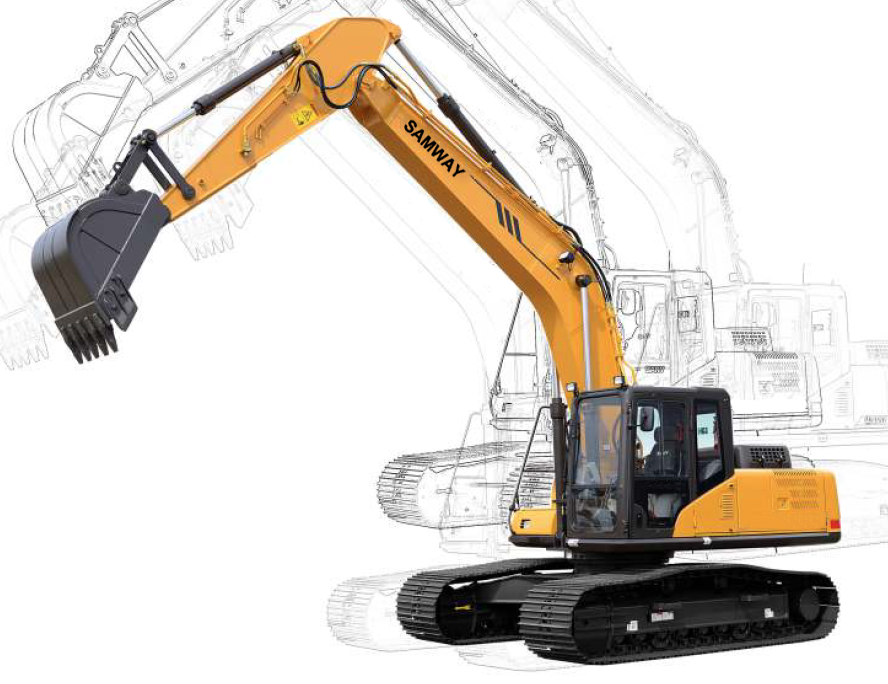

SAMWAY S235CLC Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S235CLC Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S235CLC Hydraulic Excavator
Product Description
SAMWAY S235CLC Hydraulic Excavator
• Engine: Cummins QSB 6.7, Tier 3
• Newly designed SAMWAY cab has maximum space, wide visibility and easy access to controls with a full-color monitor that
provides easy access to machine operation information
• Positive hydraulic control system provides excellent control and high productivity
• Standard features include two-way auxiliary hydraulics and a pattern-control change valve to increase productivity and versatility
OVERALL DIMENSIONS
| Standard |
Metric |
||
| A | Transport Length |
33' 2" |
10,120 mm |
| B | Transport Width |
11' 1" |
3390 mm |
| C | Transport Height |
11' 1" |
3394 mm |
| D | Upper Structure Width |
8' 11" |
2710 mm |
| E | Cab Height |
10' 0" |
3050 mm |
| F | Track Shoe Width (standard) |
2' 8" |
800 mm |
| G | Track Gauge |
8' 6" |
2590 mm |
| H | Minimum Ground Clearance |
1' 7" |
480 mm |
| I | Tail Swing Radius |
9' 6" |
2890 mm |
| J | Length Center Idler to Center Sprocket |
12' 7" |
3830 mm |
| K | Track Length |
15' 2" |
4635 mm |
| K | Boom Length |
19' 4" |
5900 mm |
| L | Arm Length (standard) |
9’ 9” |
2962 mm |
WORKING RANGE
| Standard |
Metric |
||
| a | Maximum Digging Height |
31' 2" |
9520 mm |
| b | Maximum Dumping Height |
22' 1" |
6730 mm |
| c | Maximum Digging Depth |
22' 2" |
6757 mm |
| d | Maximum Vertical Wall Digging Depth |
19' 3" |
5860 mm |
| e | Maximum Digging Reach |
33' 4" |
10,165 mm |
| f | Minimum Swing Radius |
12' 6" |
3800 mm |
| g | Maximum Height at Minimum Swing Radius |
26' 1" |
7940 mm |
MACHINE PARAMETERS
| Operating Weight |
55,589 lb (25,215 kg) |
| Engine Type |
Cummins QSB6.7 T3 |
| Engine Max Power (Gross) |
195 hp (145 kW) @ 1950 rpm |
| Engine Max Torque |
687 lbf (931 Nm) @ 1400 rpm |
| Engine Displacement |
408 in3 (6.7 liter) |
| Main Pump Flow |
2x 67 gpm (252 lpm) |
| Swing Speed |
13 rpm |
| Travel Speed |
2.0/3.4 mph (3.2/5.5 km/h) |
| Tractive Effort |
43,836 lbf-ft (195 kN) |
| Max Arm Digging Force (ISO) |
39,340 lbf-ft (122 kN) |
| Number of Upper Rollers |
2 |
| Number of Lower Rollers |
9 |
| Fuel Tank Capacity |
90 gal (340 liter) |
| Hydraulic Tank Capacity |
61 gal (230 liter) |
| Cooling System Capacity |
7.3 gal (27.6 liter) |
| Engine Oil Capacity |
7.0 gal (26.4 liter) |
| Ground Pressure (31.5”/800mm shoes) |
5.2 psi (35.7 kPa) |
Warranty Information
12 months
