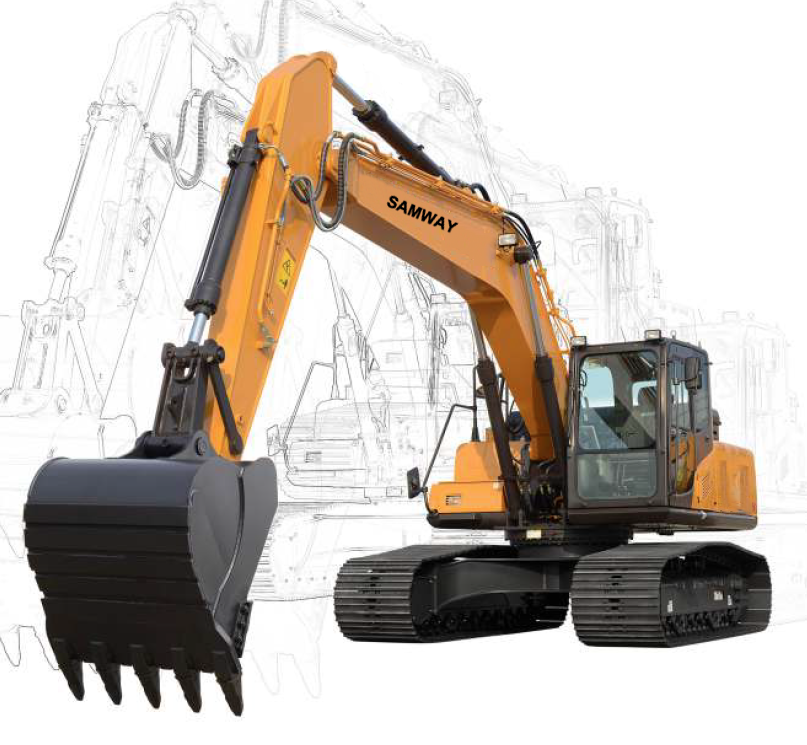

SAMWAY S215C Hydraulic Excavator

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY S215C Hydraulic Excavator

SAMWAY S215C Hydraulic Excavator

• Cov cav: Cummins QSB6.7 T4 kawg nkaus

Tsheb tavxij SAMWAY • tshiab khiv tsim los muaj ntau qhov chaw, visibility dav thiab kev siv ntawm lwm yam uas yooj yim nrog ib

tag nro-xim saib muab kev yooj yim siv cov tshuab lag luam ntaub ntawv

• Txheem nta xws li ntu hydraulics two-way thiab ib tug qauv-tswj hloov valve komproductivity thiab versatility

• Nws muaj tseeb, ntev undercarriage tsim kom stability

ZUAG QHIA TAG NRHO COV QHOV NTEV

		Txuj	Metric
A	Thauj ntev	31' 11"	9728 mm
B	Thauj dav	10' 5"	3180 mm
C	Thauj qhov siab	11' 1"	3370 mm
D	Lub qauv dav	8' 11"	2710 mm
E	Tsheb tavxij qhov siab	10' 0"	3050 mm
F	Khau khiav dav (txuj)	2' 7"	800 mm
G	Tag huv tibsi khiav	7' 10"	2380 mm
H	Yam tsawg kawg nkaus hauv av Clearance	1' 7"	480 mm
I	Voos kheej-kheej viav tw	9' 6"	2890 mm
J	Ntev Center Idler rau Center Sprocket	11' 11"	3640 mm
K	Teev sijhawm	14' 7"	4450 mm
K	Ntev boom	18' 8"	5700 mm
L	Caj npab ntev (txuj)	9’ 7”	2925 mm

UA HAUJ LWM NTAU YAM

		Txuj	Metric
a	Ntau khawb qhov siab	30' 1"	9180 mm
b	Ntau qhov siab Dumping	21' 10"	6670 mm
c	Ntau khawb qhov tob	21' 8"	6600 mm
d	Phab ntsa ntsug ntau qhov khawb tob	19' 7"	5980 mm
e	Khawb ntau cuag	33' 10"	10,307 mm
f	Yam tsawg kawg viav voos kheej-kheej	12' 2"	3730 mm
g	Qhov siab siab tshaj plaws ntawm lub voos kheej-kheej viav yam tsawg kawg nkaus	25' 2"	7680 mm

TSIS CAV

Kev khiav hauj lwm hnyav	51,989 lb (23550 kg)
Hom cav	Cummins QSB6.7 T4 kawg
Max cav faiv fab (tag nrho)	168 hp (125 kW) @ 1900rpm
Max Torque cav	540 lbf (732 Nm) @ 1500 rpm
Cav xaav	408 in3 (6.7 liter)
Twj tso kua mis loj txaus	2x 59 gpm (222 lpm)
Viav vias ceev	10.9 rpm
Mus ceev	1.9/3.3 mph (3.1/5.3 km/h)
Tractive dag zog	40,466 lbf (180 kN)
Max caj npab Diggging Force (ISO)	23,155 lbf (103 kN)
Coob cov chais sab sauv	2
Tsawg tsawg tus chais	9
Roj Tank peev xwm	90 gal (340 liter)
Peev xwm Tank DEF	5 gal (19 liter)
Peev xwm hydraulic Tank	61 gal (230 liter)
Cua txias uas muaj peev xwm	7.3 gal (27.6 liter)
Peev xwm roj cav	7.13 gal (27 liter)
Hauv siab (khau 31.5"/ 800 hli)	5.3 psi (36.3 kPa)
