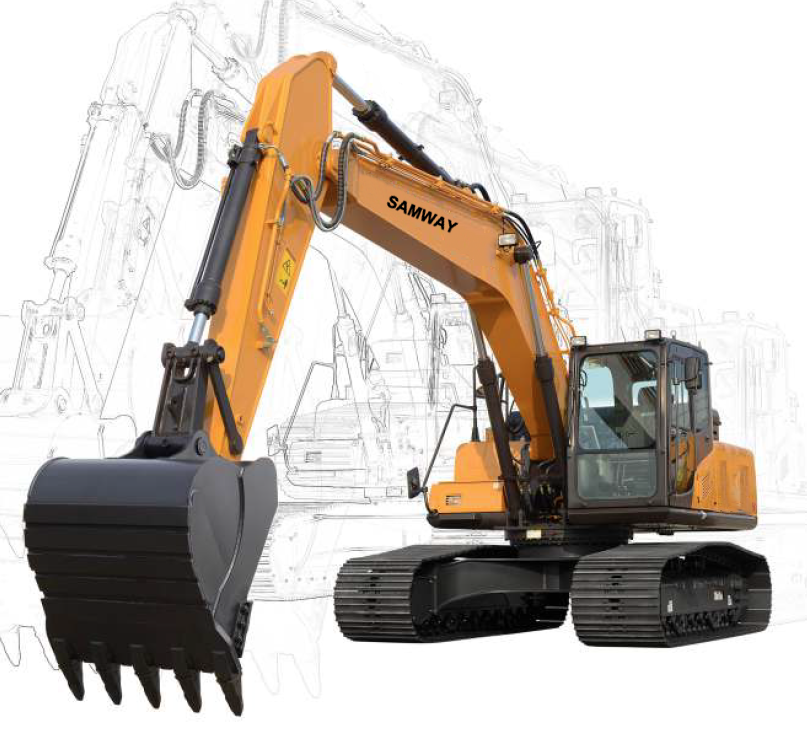

SAMWAY S215C Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S215C Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S215C Hydraulic Excavator
Product Description
SAMWAY S215C Hydraulic Excavator
• Engine: Cummins QSB6.7 T4 final
• Newly designed SAMWAY cab has maximum space, wide visibility and easy access to controls with a full-color monitor
providing easy access to machine operation information
• Standard features include two-way auxiliary hydraulics and a pattern-control change valve to increase productivity and versatility
• True, long undercarriage design to increase stability
OVERALL DIMENSIONS
| Standard |
Metric |
||
| A | Transport Length |
31' 11" |
9728 mm |
| B | Transport Width |
10' 5" |
3180 mm |
| C | Transport Height |
11' 1" |
3370 mm |
| D | Upper Structure Width |
8' 11" |
2710 mm |
| E | Cab Height |
10' 0" |
3050 mm |
| F | Track Shoe Width (standard) |
2' 7" |
800 mm |
| G | Track Gauge |
7' 10" |
2380 mm |
| H | Minimum Ground Clearance |
1' 7" |
480 mm |
| I | Tail Swing Radius |
9' 6" |
2890 mm |
| J | Length Center Idler to Center Sprocket |
11' 11" |
3640 mm |
| K | Track Length |
14' 7" |
4450 mm |
| K | Boom Length |
18' 8" |
5700 mm |
| L | Arm Length (standard) |
9’ 7” |
2925 mm |
WORKING RANGE
| Standard |
Metric |
||
| a | Maximum Digging Height |
30' 1" |
9180 mm |
| b | Maximum Dumping Height |
21' 10" |
6670 mm |
| c | Maximum Digging Depth |
21' 8" |
6600 mm |
| d | Maximum Vertical Wall Digging Depth |
19' 7" |
5980 mm |
| e | Maximum Digging Reach |
33' 10" |
10,307 mm |
| f | Minimum Swing Radius |
12' 2" |
3730 mm |
| g | Maximum Height at Minimum Swing Radius |
25' 2" |
7680 mm |
MACHINE PARAMETERS
| Operating Weight |
51,989 lb (23550 kg) |
| Engine Type |
Cummins QSB6.7 T4 final |
| Engine Max Power (Gross) |
168 hp (125 kW) @ 1900rpm |
| Engine Max Torque |
540 lbf (732 Nm) @ 1500 rpm |
| Engine Displacement |
408 in3 (6.7 liter) |
| Main Pump Flow |
2x 59 gpm (222 lpm) |
| Swing Speed |
10.9 rpm |
| Travel Speed |
1.9/3.3 mph (3.1/5.3 km/h) |
| Tractive Effort |
40,466 lbf (180 kN) |
| Max Arm Digging Force (ISO) |
23,155 lbf (103 kN) |
| Number of Upper Rollers |
2 |
| Number of Lower Rollers |
9 |
| Fuel Tank Capacity |
90 gal (340 liter) |
| DEF Tank Capacity |
5 gal (19 liter) |
| Hydraulic Tank Capacity |
61 gal (230 liter) |
| Cooling System Capacity |
7.3 gal (27.6 liter) |
| Engine Oil Capacity |
7.13 gal (27 liter) |
| Ground Pressure (31.5”/800mm shoes) |
5.3 psi (36.3 kPa) |
Warranty Information
12 months
