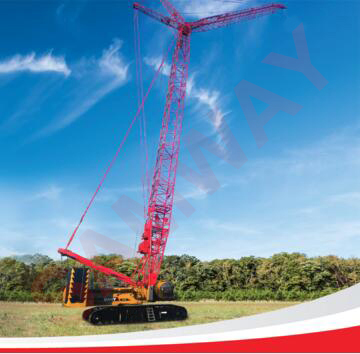

SAMWAY SCC8260 Crawler Crane

SAMWAY SCC8260 Crawler Crane

• Maximum lifting capacity 260t - 573,201lb, max. lifting moment 1,470.4t.m. - 10,365 lbf-kips

• Cummins t4f powered, rated at 450HP. The engine is powerful, efficient and environmentally friendly.

• Global transportation capacity: Maximum single component transportation weight: 45t - 99,208lb, transportation width, 3m - 9.8ft.

Transportation height, within 3.2m - 10.5ft. This meets global on-road transportation regulations, saving transportation co

• Hydraulic cylinders used for live mast, self erection, carbody jacks, crawler frame pins, counterweight lifting, etc.

The design of multiple self-assembly cylinders, one-key erection of boom hoist mast and quick-coupling rope lugs makes (dis)assembly of

MACHINE PARAMETERS

	Standard	Metric
Max. rated lifting capacity	573,201 lbs	260 t
Max. rated lifting moment	10,635 ft kips	1470.4 t•m
Boom length	65' ~ 301'	20~92 m
Boom luffing angle	30 ~ 85°
Longest boom + Longest fixed jib	203' + 137'	62 + 42 m
Boom to jib angle	10 ~ 30°
Boom + fixed jib (for Shield configuration)	65' + 39' ( 23')	20+12 (7) m
Boom to jib angle	20°
Max. rated lifting moment	452x18 = 8137 ft kips	62.5×18=1125 t•m
Longest boom + Longest luffing jib	203' + 206'	62+63 m
Boom luffing angle	65 ~ 88°
Main (aux.) hoist wire rope (outermost working layer)	410 ft/min	0 ~ 125 m/min
Main (aux.) hoist wire rope free fall (optional)	383 ft/min	0 ~ 117 m/min
Boom luffing winch wire rope(outermost working layer)	433 ft/min	0 ~ 132 m/min
Jib luffing winch wire rope (outermost working layer)	252 ft/min	0 ~ 77 m/min
Swing speed	0 ~ 1.8 rpm
Traveling speed	0.62/0.31 mph	0 ~ 1.0/0 ~ 0.5 (low/high) km/h
Gradient capability	30%
Basic boom, 100t rear counterweight, 46t carbody counterweight, 260t hook	562,178 lbs	255 t
Output power /Rated speed	450 hp @1800 RPM	336/1800rpm kW/rpm
Max. transport weight of single part (with main and aux. hoist winches)	99,207 lbs	45 t
Transport dimensions (LWH)	43'8" x 9'10" x 10'6"	13320×3000×3200 mm
Average ground bearing pressure	20 PSI	0.14 MPa
