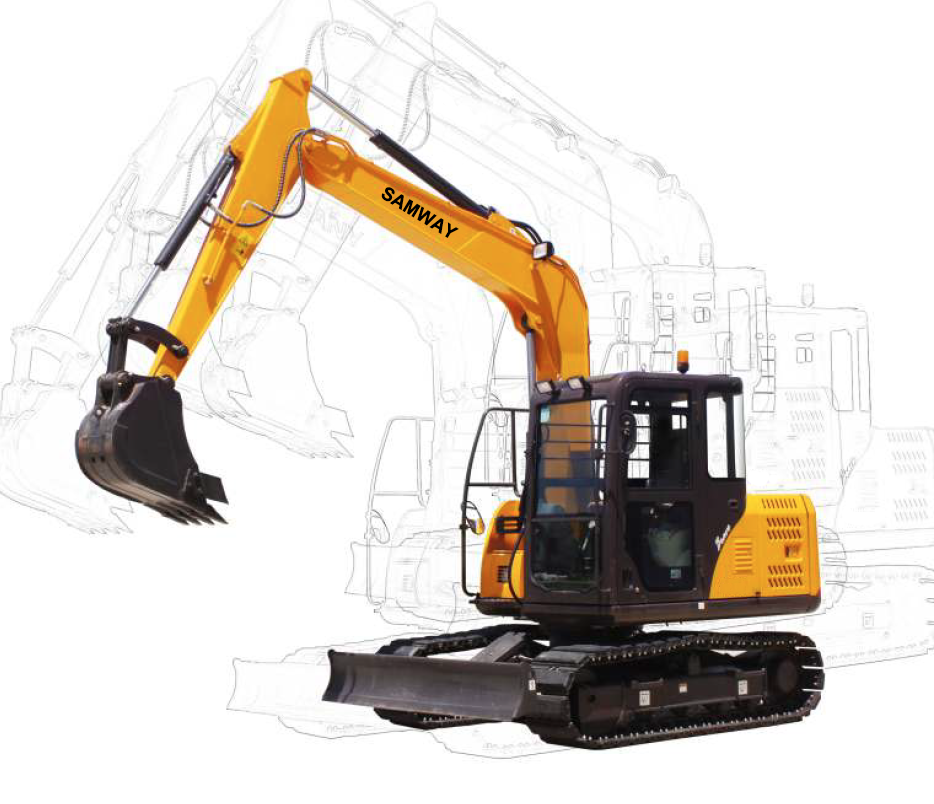

SAMWAY S37C Hydraulic Excavator

Price:

sales@samway.com

SKU:

Brand:

Samway

Weight:

N/A

Availability:

SAMWAY S37C Hydraulic Excavator

SAMWAY S37C Hydraulic Excavator

• Yam tsawg kawg viav vias voos kheej-kheej rau qhov chaw nrhiav hauj lwm kaw ntom nti

Lawv pib-deceleration • maximizes efficiency thaum tsis noj roj

• Tsim tshiab muaj muaj ceev thaum tuav tswj du hydraulic

• Txheem nta xws li ntu two-way hydraulics, cov hniav sab nram qab sau, thiab ib tug qauv tswj kev hloov valve kom productivity

ZUAG QHIA TAG NRHO COV QHOV NTEV

		Txuj	Metric
A	Thauj ntev	20'	6095 mm
B	Thauj dav	7’ 3”	2220 mm
C	Thauj qhov siab	8' 11"	2720 mm
D	Lub qauv dav	6' 8"	2040 mm
E	Hniav qhov siab	1' 4"	405 mm
F	Khau khiav dav (txuj)	1' 6"	450 mm
G	Tag huv tibsi khiav	5' 9"	1750 mm
H	Yam tsawg kawg nkaus hauv av Clearance	1' 3"	380 mm
I	Voos kheej-kheej viav tw	5' 11"	1800 mm
J	Ntev Center Idler rau Center Sprocket	7’ 2”	2195 mm
K	Teev sijhawm	9' 3"	2815 mm

UA HAUJ LWM NTAU YAM

		Txuj	Metric
a	Ntau khawb qhov siab	24' 1"	7340 mm
b	Ntau qhov siab Dumping	18' 0"	5495 mm
c	Ntau khawb qhov tob	14' 7"	4450 mm
d	Phab ntsa ntsug ntau qhov khawb tob	13' 7"	4130 mm
e	Khawb ntau cuag	21' 4"	6510 mm
f	Yam tsawg kawg viav voos kheej-kheej	6' 4"	1940 mm
g	Qhov siab siab tshaj plaws ntawm lub voos kheej-kheej viav yam tsawg kawg nkaus	18' 1"	5520 mm

TSIS CAV

Kev khiav hauj lwm hnyav	16,050 lb (7280 kg)
Hom cav	Isuzu T4i
Cav Max fais fab (Net)	54.3 hp (40.5 kW) @ 2000 rpm
Max Torque cav	155 lbf-ft (210 Nm) @ 1500 rpm
Cav xaav	133 in3 (2.2 liter)
Twj tso kua mis loj txaus	1x 37.5 gpm (142 lpm)
Viav vias ceev	10 rpm
Mus ceev	1.5/2.7 mph (2.4/4.4 km/h)
Tractive dag zog	12,770 lbf (56.8 kN)
Max caj npab Digging Force (ISO)	6,744 lbf (30 kN)
Coob cov chais sab sauv	1
Tsawg tsawg tus chais	5
Roj Tank peev xwm	39.6 gal (150 liter)
Peev xwm hydraulic Tank	31.7 gal (120 liter)
Cua txias uas muaj peev xwm	3.2 gal (12 liter)
Peev xwm roj cav	2.6 gal (10 liter)
Av siab (rau khau txheem)	4.8 psi (33 kPa)
