SAMWAY S365C Hydraulic Excavator
Product Description

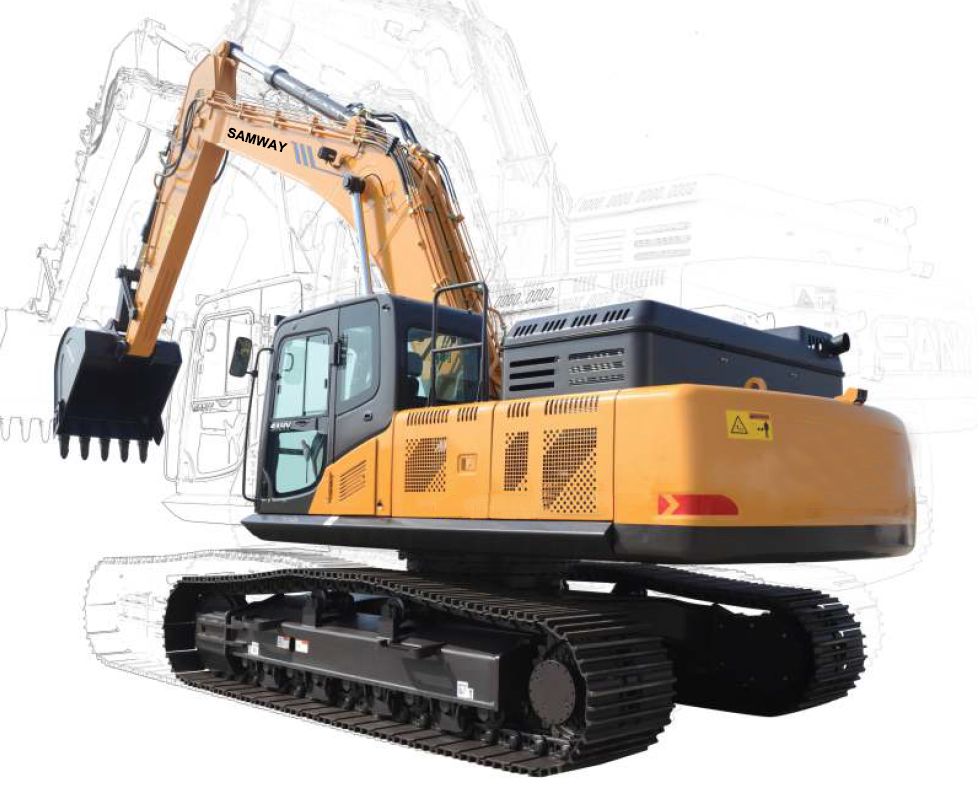

SAMWAY S365C Hydraulic Excavator
• Engine: Cummins QSL 9, Tier 4 final
• SAMWAY cab has excellent space, wide visibility and easy access to controls to maximize operator comfort
• Enhanced engine/hydraulic management system marries excellent control and high productivity with fuel efficient performance
• Standard features include two-way thumb controlled auxiliary hydraulics, a pattern-control change valve, and rear-view camera
• Focus on reliability and serviceability ensures convenient access and increased uptime
OVERALL DIMENSIONS
| Standard |
Metric |
||
| A | Transport Length |
36' 5" |
11,100 mm |
| B | Transport Width |
11' 2" |
3390 mm |
| C | Transport Height |
11' 9" |
3600 mm |
| D | Upper Width |
9' 11" |
3020 mm |
| E | Cab Height |
10' 4" |
3140 mm |
| F | Track Shoe Width (standard) |
2' 7" |
800 mm |
| G | Track Gauge |
8' 6" |
2590 mm |
| H | Minimum Ground Clearance |
1' 9" |
550 mm |
| I | Tail Swing Radius |
10' 10" |
3300 mm |
| J | Length Center Idler to Center Sprocket |
13' 7" |
4140 mm |
| K | Track Length |
16' 7" |
5055 mm |
| Boom Length |
21' 4" |
6470 mm |
|
| Arm Length (standard) |
10’ 5” |
3178 mm |
|
| Arm Length (optional) |
13’ 1” |
4000 mm |
WORKING RANGE
| Standard |
Metric |
||
| a | Maximum Digging Height |
33' 2" |
9520 mm |
| b | Maximum Dumping Height |
23' 4" |
6730 mm |
| c | Maximum Digging Depth |
24' 0" |
6757 mm |
| d | Maximum Vertical Wall Digging Depth |
21' 3" |
5860 mm |
| e | Maximum Digging Reach |
36' 5" |
10,165 mm |
| f | Minimum Swing Radius |
14' 2" |
3800 mm |
| g | Maximum Height at Minimum Swing Radius |
27' 10" |
7940 mm |
MACHINE PARAMETERS
| Operating Weight |
79,860 lb (36,224 kg) |
| Engine Type |
Cummins QSL9 T4 final |
| Engine Max Power (Gross) |
286 hp (213 kW) @ 1850rpm |
| Engine Max Torque |
895 lbf-ft (1213 Nm) @ 1500 rpm |
| Engine Displacement |
542 in3 (8.9 liter) |
| Main Pump Flow |
2x 95 gpm (360 lpm) |
| Swing Speed |
9.8 rpm |
| Travel Speed |
2.1/3.2 mph (3.4/5.2 km/h) |
| Tractive Effort |
48,109 lbf-ft (214 kN) |
| Max Arm Digging Force (ISO) |
37,835 lbf-ft (168 kN) |
| Number of Upper Rollers |
2 |
| Number of Lower Rollers |
9 |
| Fuel Tank Capacity |
143 gal (540 liter) |
| DEF Tank Capacity |
5 gal (19 liter |
| Hydraulic Tank Capacity |
90 gal (340 liter) |
| Cooling System Capacity |
12.5 gal (48 liter) |
| Engine Oil Capacity |
7.7 gal (29 liter) |
| Ground Pressure (31.5”/800mm shoes) |
7.1 psi (48.7 kPa) |
Warranty Information
12 months
