Product Description

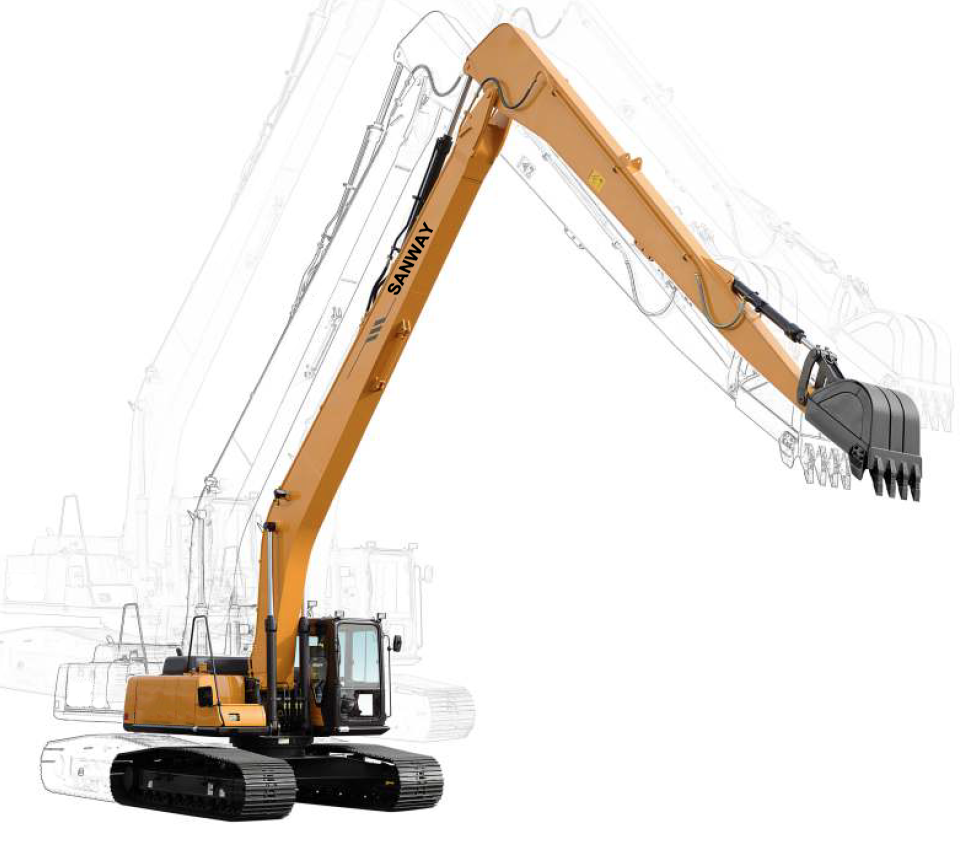

SAMWAY S235CLR Hydraulic Excavator

• Cov cav: Tier Cummins QSB 6.7, 3

Tsheb tavxij SAMWAY • tshiab khiv tsim los muaj ntau qhov chaw, visibility dav thiab kev siv ntawm lwm yam uas muaj ib tug saib tag nro-kob uas muaj ntaub ntawv zov me nyuam tshuab yooj yim siv tau yooj yim

• Hydraulic tswj txoj kev tswj yav tom ntej thiab ua siab productivity

• Txheem nta xws li ntu hydraulics two-way thiab ib tug qauv-tswj hloov valve komproductivity thiab versatility

ZUAG QHIA TAG NRHO COV QHOV NTEV

		Txuj	Metric
A	Thauj ntev	45' 3"	13,790 mm
B	Thauj dav	10' 5"	3180 mm
C	Thauj qhov siab	11' 6"	3350 mm
D	Lub dav	8' 11"	2710 mm
E	Tsheb tavxij qhov siab	10' 0"	3050 mm
F	Khau khiav dav (txuj)	2' 8"	800 mm
G	Tag huv tibsi khiav	9' 6"	2890 mm
H	Yam tsawg kawg nkaus hauv av Clearance	1' 7"	480 mm
I	Voos kheej-kheej viav tw	9' 6"	2890 mm
J	Ntev Center Idler rau Center Sprocket	12' 7"	3830 mm
K	Teev sijhawm	15' 2"	4635 mm
K	Ntev boom	32' 2"	9800 mm
L	Caj npab ntev (txuj)	24’ 7”	7500 mm

UA HAUJ LWM NTAU YAM

		Txuj	Metric
a	Ntau khawb qhov siab	46' 2"	14,070 mm
b	Ntau qhov siab Dumping	38' 9"	11,820 mm
c	Ntau khawb qhov tob	46' 7"	14,190 mm
d	Phab ntsa ntsug ntau qhov khawb tob	58' 4"	17,770 mm
e	Yam tsawg kawg viav voos kheej-kheej	21' 5"	6,528 mm
f	Qhov siab siab tshaj plaws ntawm lub voos kheej-kheej viav yam tsawg kawg nkaus	36' 2"	11,010 mm

TSIS CAV

Kev khiav hauj lwm hnyav	60,960 lb (27,650 kg)
Hom cav	Cummins QSB6.7 T3
Max cav faiv fab (tag nrho)	195 hp (145 kW) @ 1950rpm
Max thoob peev xwm	0.8 yard³ (0.6 meter³)
Minnesota ntu	408 in3 (6.7 liter)

LIFTING TRANSFER

Load Taw tes Qhov siab	Load voos kheej-kheej										Thaum Max. Cuag
	9.8 ft (3.0 m)		19.7 ft (6.0 m)		29.5 ft (9.0 m)		39.4 ft (12.0 m)		49.2 ft (15.0 m)		Thaum Max. Cuag
													ko taw (' meter ')
29.5 (9.0)	lb kg										1907 865	1907 865	46.8 (14.8)
19.7 (6.0)							4797 2176	4797 2176	2899 1315	2899 1315	1731 785	1731 785	52.3 (15.9)
9.8 (3.0)					5847 2652	5847 2652	5880 2677	5880 2677	3371 1529	2901 1316	1596 724	1596 724	53.9 (16.4)
0 (0)	8236 3736	8236 3736	14,321 6469	14,321 6469	5935 2692	5935 2692	6568 2979	7169 3252	3990 1810	2654 1204	1863 845	1863 845	53.6 (16.3)
-9.8 (-3.0)	11,505 5219	11,505 5219	16,806 7623	13,614 6175	8532 3870	9773 4433	6243 2832	8303 3766	4952 2246	2500 1134	3583 1625	2028 920	51.5 (15.7)
-19.7 (-6.0)	15,532 7045	15,532 7045	17,917 8127	15,091 6845	9381 4255	10,948 4966	6111 2772	8671 3933			4316 1958	2789 1265	47.3 (47.3)
-29.5 (-9.0)	20,360 9235	20,360 9235	18,177 8245	16,751 7598	9531 4323	11,102 5036	6261 2840	8830 4005			6272 2845	3891 1765	40.4 (12.3)
-39.4 (-12.0)	22,591 10247	22,591 10247	18,397 8345	15,752 7145							7712 3498	6823 3095	28.7 (8.7)

Tsab ntawv:

(1) kev muaj raws ISO 10576.

(2) nqa tau ntawm koob SY235CLR tsis tshaj 75% ntawm tipping load nrog lub tshuab rau khov, theem hauv pem teb los yog 87% hydraulic puv peev xwm tsis xws li siv fais fab boost.
