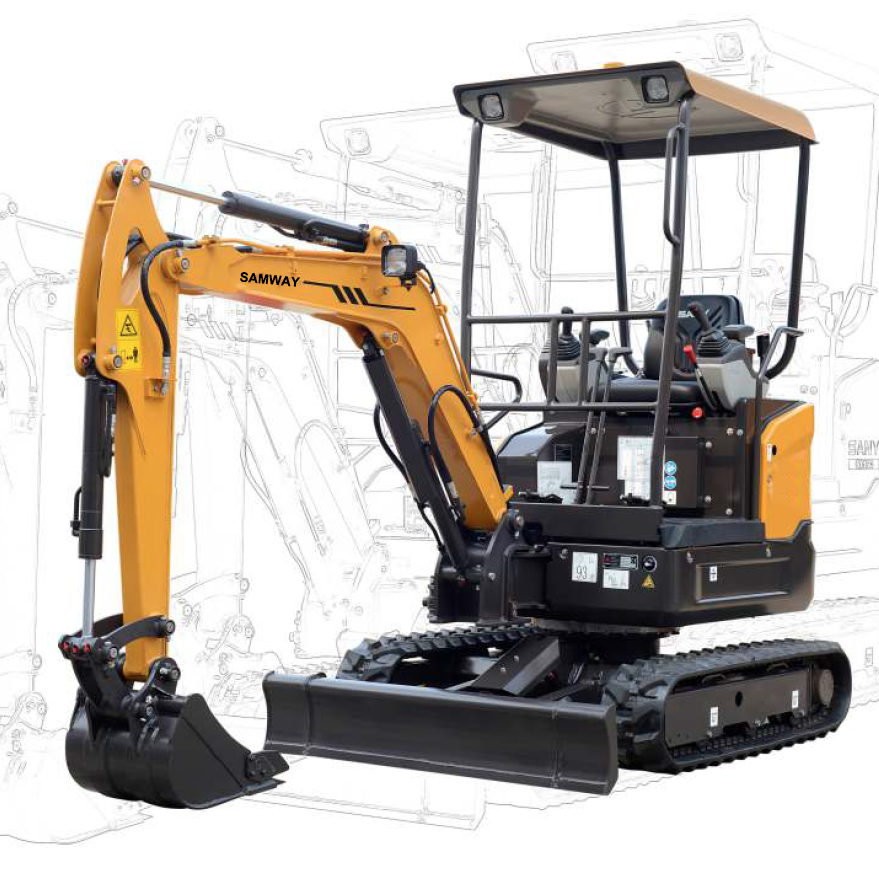

SAMWAY S16C Hydraulic Excavator
Price:
sales@samway.com
SKU:
SAMWAY S16C Hydraulic Excavator
Brand:
Weight:
N/A
Availability:
SAMWAY S16C Hydraulic Excavator
Product Description
SAMWAY S16C Hydraulic Excavator
• Cov cav: Yanmar 3TNV74F, Tier 4f
• Kev pab yooj yim ntsiab lus rau cov nkawm yooj yim.
• Luv tus Tsov tus tw viav yog zoo tagnrho rau cov chaw hauj lwm uaskaw ntom nti thiab ua hauj lwm nyob rau hauv tej lub tsev
• Khiav hauv cov boom thiab npab li txheem siv yooj yim haum tu thiabkhiav ntawm hydraulic attachments
• Ntsaws tsoov hydraulics efficiency ntxiv roj thiab kev kawm maximized
• Hydraulically extendable undercarriage nrog adjustable pem hauv paus hniav dav txheem
• Ceev ob mus txawv tebchaws
ZUAG QHIA TAG NRHO COV QHOV NTEV
| Txuj |
Metric |
||
| A | Thauj ntev |
11' 7" | 3575 mm |
| B | Thauj dav |
3' 2" / 4’ 5” | 980 / 1350 mm |
| C | Thauj qhov siab |
7' 11" | 2420 mm |
| D | Sab saum toj dav |
6' 2" | 980 mm |
| E | Platform qhov siab |
1' 6" | 470 mm |
| F | Cav npog qhov siab |
4' 2" | 1280 mm |
| G | Voos kheej-kheej viav tw |
3' 0" | 920 mm |
| H | Khiav hauv pem teb ntev |
4' 0" | 1225 mm |
| I | Teev sijhawm |
5' 2" | 1585 mm |
| J | Tag huv tibsi khiav |
2’ 5” / 3’ 8” | 750 / 1120 mm |
| K | Txheem khiav khau dav |
0' 10" | 230 mm |
| L | Dozer hniav qhov siab |
0' 11" | 270 mm |
| M | Max hniav dozer. Qhov siab |
1’ 0” | 310 mm |
| N | Dozer hniav Max qhov tob |
1’ 0” | 320 mm |
UA HAUJ LWM NTAU YAM
| Txuj |
Metric |
||
| a | Ntau khawb qhov siab |
12' 3" | 3665 mm |
| b | Ntau qhov siab Dumping |
8' 8" | 2635 mm |
| c | Ntau khawb qhov tob |
7' 9" | 2360 mm |
| d | Phab ntsa ntsug ntau qhov khawb tob |
7' 3" | 2215 mm |
| e | Khawb ntau cuag |
13' 1" | 4000 mm |
| f | Yam tsawg kawg viav voos kheej-kheej |
5' 5" | 1655 mm |
| g | Qhov siab siab tshaj plaws ntawm lub voos kheej-kheej viav yam tsawg kawg nkaus |
9' 1" | 2745 mm |
TSIS CAV
| Kev khiav hauj lwm hnyav |
4,023 lb (1825 kg) |
| Hom cav |
Yanmar Tier 4 final |
| Max cav faiv fab (tag nrho) |
15.0 hp (11.2 kW) @ 2400 rpm |
| Max Torque cav |
38.2 lbf-ft (51.8 Nm) @ 1800 rpm |
| Cav xaav |
60.6 in3 (0.993 liter) |
| Twj tso kua mis loj txaus |
12.7 gpm (48 lpm) |
| Viav vias ceev |
10 rpm |
| Mus ceev |
1.3/2.1 mph (2.1/3.7 km/h) |
| Tractive dag zog |
3,507 lbf (15.6 kN) |
| Max caj npab Digging Force (SAE) |
2,068 lbf (9.2 kN) |
| Coob cov chais sab sauv |
2 |
| Tsawg tsawg tus chais |
3 |
| Roj Tank peev xwm |
6.1 gal (23 liter) |
| Peev xwm hydraulic Tank |
5.5 gal (21 liter) |
| Cua txias uas muaj peev xwm |
1.0 gal (3.8 liter) |
| Peev xwm roj cav |
0.5 gal (2.0 liter) |
| Hauv siab (31.5" hli 800 khau) |
4.2 psi (29 kPa) |
Warranty Information
12 months
