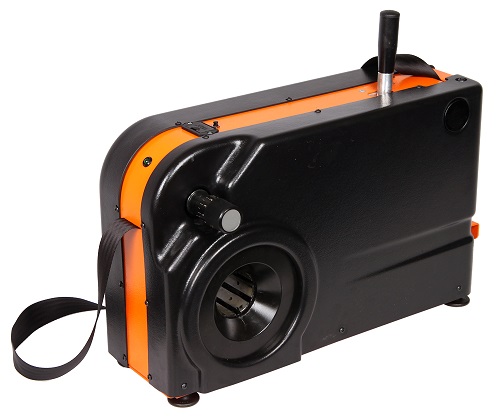

H16AP  Crimping Machine

Hydroscand - H16AP, True Ergonomic Portability

We have redesigned the concept from scratch to make oursmallest on site crimpers more ergonomic. Using compressed air for operation the operator is relieved from pumping. Carried like a briefcase, the weight of the crimper stays close to the leg and saves the back of the operator. Dies are integrated inside the press which means no more mess with the dies. The machine is designed to fit the operator.

TECHNICAL DATA
Crimping range in mm: 10 - 45 mm
Crimping range in inches: 0,39 - 1,77
Crimping force in metric tons: 95,5
Crimping force in kN: 955
Maximum hose size in inches: 1"
Die Set: H16
Maximum travel of dies in mm: 20 mm
Master die Diam. /Lenght in mm: 39 / 64
Master die Diam. /Lenght in inches: 1,54 / 2,52
Machine control: Manual
Motor size in kW 1 phase / 3 phase: Air pressure
Motor size in HP 1 phase / 3 phase: Air pressure
Colour: Black / Orange

DESIGNATION
H16AP: 9028-00-01

DIE SET
H16-10: 9070-16-10
H16-12: 9070-16-12
H16-14: 9070-16-14
H16-16: 9070-16-16
H16-19: 9070-16-19
H16-23: 9070-16-23
H16-27: 9070-16-27
H16-31: 9070-16-31
